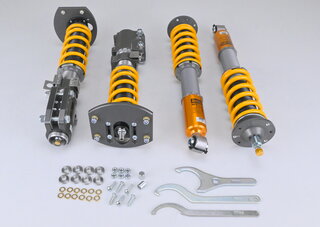

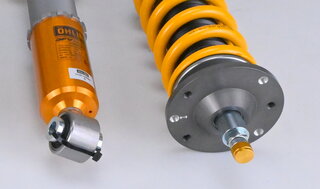

ÖHLINS Sport Suspension 964/ 965 - With Camber Plates

Suspension with 20 different setting´s (manually adjustable) with camber plates.

With the Öhlins Road & Track coilover suspension, driving pleasure and safety on the road and on the race track is guaranteed. In addition to the usual high performance, the Öhlins suspension also offers excellent everyday comfort with the patented DFV - Dual Flow Valve.

Features:
DFV (Dual Flow Valve Technology)
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year Limited Warranty
Height adjustable

Front:
McPherson Strut
Single bleed adjuster
Spring preload adjuster (approx. 25 mm lower than standard)
Coil Springs (50 N/mm)
Dustcovers

Rear:
Conventional Shock Absorber
Single bleed adjuster
Spring preload adjuster
Coil Springs (90 N/mm)
Dustcovers

Öhlins Road and Track Suspension in Depth:

DFV Technology Explained:
Dual Flow Valve technology sets Öhlins apart from the competition. With DFV, the dual flow valve gives the same characteristics on rebound as it does on compression, due to the the damper fluid having a consistent path of flow in both directions. This means that the wheel and tire can quickly and effectively resume their position back on the ground, providing superior grip and traction.

Because DFV opens more quickly and easily on minor road imperfections, ride comfort is surprisingly supple and more akin to an OEM strut than a coilover set-up. Over undulating surfaces, the compliancy of the Road and Track (R) units allows the car to crest bumps and pot-holes, while still keeping you stable and in control. Traction is always maintained at its optimum level. Öhlins Road & Track range uses DFV technology on every single fitment, making it the perfect upgrade for the enthusiast that needs comfort and agility in the one unit.

Ride Height Adjustments:
When adjusting ride height on coilover units, it's worth comparing how it's done. On many inferior designs, height is adjusted by raising or lowering the lower spring platform. This has the effect of compressing or extending the spring, which can limit the suspension travel and may cause topping out. The Öhlins method is to leave the spring seat in its perfect position, while the lower flange spins easily on the threaded body, to allow you to adjust with absolute precision while maintaining the intended design characteristics. Once you've set it all up, the adjuster simply locks off to maintain your exact settings!

Consistent Handling Characteristics:
Dampers will get hot. That's one thing that you can be sure of. As the piston moves within the damper, it generates friction – and therefore, heat. Although we can't stop heat, we can deal with it, and this is yet another way that Öhlins differs from the competition. As the heat increases, the viscosity of the damper fluid can change, altering the car's handling characteristics. Our unique needle bleed valve expands with temperature, closing the gap that the fluid travels through, maintaining a consistent damping rate. The best thing of all? You won't even notice! All you'll feel is that the car responds consistently, lap after lap, turn after turn. Allowing you to concentrate on braking points and apexes whilst the Öhlins technology takes care of the damping.

Fine tune dampening:
These kits all work well 'out of the box', but there's still plenty of adjustment for you to set things your way. You like stiff and reactive? Or soft and forgiving? It's all there. Too much low speed rebound damping can have an adverse effect on grip, so the easily accessible adjuster at the base of the Öhlins units allows small, but positive increments of fine tuning, so you can take into account every single parameter. Sounds complicated? Nothing could be further for the truth. Just a few clicks either way from our factory settings will soon have your car responding precisely to your inputs and driving style.

When comparing suspension, why settle for second best?

PLEASE NOTE: This only fits all of the 964 models 89-94 models.
