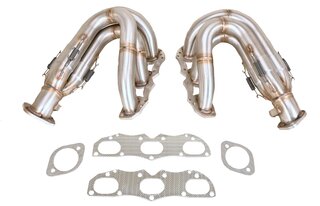

Long Tube Bypass Race Header Set 981 Cayman and Boxster - Cargraphic

Interested in more performance with an emphasis on more torque out of each corner at the track? Look no further than the Cargraphic Long Tube Header Set, perfect for any owner with a passion for motorsports. These headers are made from durable SS 304L Lightweight Stainless Steel and feature reinforced, lightweight, laser-cut flanges that are hand-welded and hand-ported into 2” (50.8 mm) equal-length, long tube primaries. The diameter is specifically designed for the displacement range and firing order (1, 6, 2, 4, 3, 5). Each primary tube is mandrel-bent, segmented, and back-purged TIG welded by hand to ensure strength and prevent stress cracks. The primary tubing leads to the custom-made, back-purged TIG welded, internally ported merge collector. The merge collector combines primary flow and increases the exhaust gas velocity, which broadens the engine's torque curve all the way to the horsepower peak. The design includes a factory-style 2-bolt flange that can accommodate the factory muffler, a Cargraphic muffler, or an FVD Brombacher Edition muffler.

Features:
+ 16 HP & + 12 TQ Gain
Manufactured from Durable SS 304L Lightweight Stainless Steel
Reduced Backpressure + Operating Temperature
Increased Mid-Range and Top End Performance + Dyno Tested
Includes Spring Loaded Merge Collector Section to Absorb Vibrations, Allow Thermal Expansion + Prevent Stress Cracks
Lower, Deeper, Base Sound + Increased Decibels
Mandrel Bent to Maintain Constant Diameter + Segmented Back-Purged TIG Welded Motorsport Design
Direct Bolt-on Replacement
Ø 2” (50.8 mm) Primary Pipe Diameter -> Ø 2.5” (63.5 mm) Secondary Pipe Diameter
Greater Throttle Response

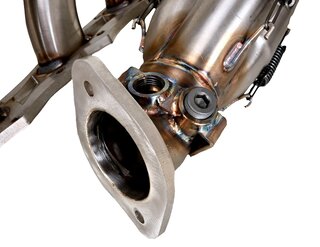

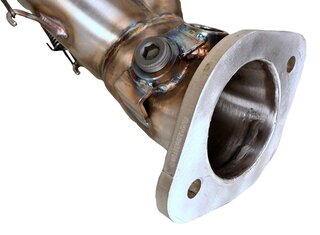

Includes Reinforced Primary and Secondary O2 Sensor Bungs
Sourced from Cargraphic in Germany
Enhanced, Exotic Mid-Engine Porsche Sound
Catalytic Bypass
Weight Reduction

Sold as a set. Left and right sides included. 1 set is necessary per car.

Please note:Catalytic bypass headers are not OBD2 compliant, not C.A.R.B. certified (California) nor are they TÜV approved or EPA certified. They are intended for racing use only. Importing FVD products from Germany does not involve any hidden fees. You will only be responsible for state taxes (if applicable) and shipping charges from our warehouse to your location. We will handle all the importation, customs, duties, euro-to-dollar conversion, and applicable VAT taxes.
